Portable Sand Blasting Machine

The portable sand blasting machine is an improved version of the sand blasting machine. It has portable wheels that make it easy to move from one job site to another. It is also used for surface preparation before painting, welding or applying any other coating. It comes in different sizes and specifications depending on the applications for which they are used.

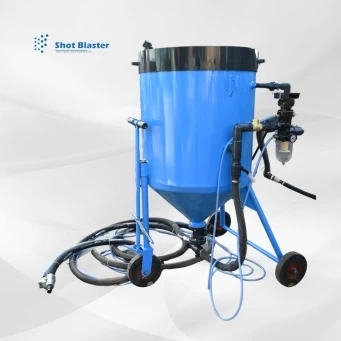

Portable Sand Blasting Machine
REQUEST CALLBACK
Portable Sand Blasting Machine
Product Details:

MODEL PRESSURE TANK THICKNESS CAPACITY NOZZLE SIZE CLEANING RATE
P7-150 6 mm 150 kg 5 mm 3 to 4 m2/hr.
P7-300 6 mm 300 kg 6 mm 5 to 7 m2/hr.
P7-500 6 mm 500 kg 8 mm 9 to 12 m2/hr.
P7-1000 6 mm 1000 kg 10 mm 15 to 21 m2/hr.

Portable Sand Blaster

A portable sand blasting machine is a type of sand blasting machine that has the additional features of wheels and movable handles that make it convenient to transport it from one workstation to another with ease. In the portable sand blasting machine, any kind of abrasive material can be used for sand blasting. This machine is used in many industries to remove dust, contaminants, and anti-corrosion coatings from metal surfaces. Portable Sand Blasting Equipment is available in a wide range of models.

Principle of Portable Sand Blasting Machine

In a portable sand blasting machine, the abrasive media is blown out with compressed air over the metal surface at very high speed and pressure, which must be sand blasted. With this high pressure, the medium falls on the substrate and removes all dust particles and contaminants, and provides a smoother surface. Here the compressor plays a very important role in blasting. The blasting speed of the machine depends on the pressure supplied by the compressor to the air and the abrasive medium.

Main parts of portable sand blasting machine

  • Wheels: Wheels are used to move the machine from one place to another.
  • Handle: The handle of the portable sand blasting machine makes it convenient to carry the machine to any work site.
  • Hose Connector: Compressed air released by the compressor enters the machine with the help of the hose coupling.
  • Air Filter: When compressed air enters the machine, it takes with it a certain amount of moisture. This humidity can damage machine parts, so it is essential to isolate this humidity from compressed air. To do this, an air filter is used that helps to separate the moisture from the compressed air and through which the moisture-free air passes through the NRV.
  • Air Compressor: The compressor plays an important role in sand blasting machine. The pressure with which the air and the abrasive medium will fall on the metal surface for blasting depends on the compressor. The higher the pressure, the greater the speed of the abrasive medium through which it falls on the surface, and due to this excellent blasting can be carried out.
  • NRV (Check Valve): NRV helps to block the air flow. When compressed air passes through the NRV, it cannot return from its directed path and travel into the blast tube.
  • Pressure Manometer: Pressure measurement can be done with the help of a pressure gauge. Displays accurate pressure readings in kg/cm2 and pound/inch.
  • Pressurized tube: A pressurized container is a container containing a friction medium and compressed air. Maintains pressure required for blasting.
  • Mushroom valve: Mushroom valve is also known as the "pop-up valve". It is capable of its own movement. A mushroom valve is used for automatic tank sealing. When compressed air enters the pressure vessel, it automatically seals the vessel and thus maintains the pressure. In addition, when detonating, it depresses the tank and facilitates filling.
  • Mixing Tube: When the compressed air from the blast hose goes into the mixing tube, the abrasive from the pressure vessel also enters simultaneously and the abrasive media and compressed air are mixed into the mixing tube.
  • T-Joint: The tablet cannot return after passing through the NRV, so the T-joint goes into the pressure vessel.
  • Ball Valve: When the ball valve is released, compressed air travels through the blast hose to the mixing tube.
  • Grain Hose: With the help of a blast hose, compressed air is transferred to a mixing tube, where the abrasive and compressed air is mixed.
  • Push Button Valve: When the pinch valve is released, it allows abrasive media to enter the mixing tube. Sand Blasting Pinch valve is installed in the mixing tube with the help of a pinch valve plate mounted on a rubber sleeve.
  • Sand Blasting Nozzle: The Sand Blasting nozzle is equipped with a nozzle holder on the blast hose where a rubber ring is used to protect it from abrasive media when it passes through. It is usually made of tungsten carbide.
  • Remote Control Valve System: It is a complete pneumatic control system for remote activation and deactivation of sand blasting containers. The remote control system mainly consists of a remote control valve and a dead handle.
  • Dead Handle: When the Dead Man's handle is activated, the blasting process begins. When the handle is released, the blast cleaning process stops and the system removes air from the bowl so that more abrasive can be filled into the blast cleaning bowl.
  • Release Valve: The release valve is used to depressurize the pressure vessel when all blasting operations have stopped.

Working of Portable Sand Blasting Machine

In a portable sand blasting machine, the abrasive medium is fed through a tight screen into a pressure vessel. On the other hand, compressed air enters through the hose collar at a very high speed and pressure. When the ball valve is released, compressed air passes through the air filter. Air compressors carry some moisture, so it became necessary to separate the compressed air from the moisture. An air filter is used for this, which separates the moisture from the air and allows it to pass through the NRV to the blast hose. The NRV intercepts the airflow to return and directs its path. The ball valve is released so that air can reach the blast hose from where it enters the mixing tube.

When the abrasive enters the pressure vessel, the mushroom valve activates and automatically seals the pressure tank. The abrasive medium and compressed air from the pressure vessel go to the mixing tube. In the mixing tube, both air pressure and abrasive compressed air pressure were found. Here, with high pressure and speed, abrasive media and compressed air are blown over the metal surface and shot blasting takes place.

Types of portable sand blasting machine

Portable sand blasting machine types can be classified into two categories based on their mechanism. Like:

  • Portable sand blasting machine without remote control
  • Portable sand blasting machine with remote control

Portable sandblasting machine WITH REMOTE

Portable sandblasting machine WITHOUT REMOTE

Can be operated by remote

Cannot be operated by remote

A single operator is sufficient

More than one operator is needed

Simple operation

Quite complicated operation

Expensive

Cheaper



They have a similar function but their mechanism is quite different. In a portable sand blasting machine without a remote control valve, the remote system is not used; the remote system is used in the remote control portable sand blasting machine. Both machines have different specifications and are used for different applications.

Without Remote Control Portable Sand Blasting Machine

The remote control portable sand blasting machine is a traditional machine used for sand blasting. It does not have a remote control system. Without a remote system, compressed and abrasive air is blown over the metal surface and the blasting process proceeds normally. Here, more than one operator is required to start / stop the blasting process. An additional operator is required to deactivate the release valve to depressurize the pressure vessel and refill the abrasive media for another blast process.

Remote Control Portable Sand Blasting Machine

The remote control portable polishing machine is an upgraded version of the polishing machine. It has a remote control system and can be operated from that remote control. No more operators are required in the operation of this machine. A single operator can also deactivate the dump valve with the help of a switch that is connected to the remote control system. With the help of a switch, the operator can deactivate the machine from where he is blasting.

Portable Sand Blasting Machine Models

Based on different sizes and specifications, portable sand blaster machines are available in different models. The selection of models depends on the application for which they are being used.

Some standard models of portable sand blasting machines are:

  • P7-150
  • P7-300
  • P7-500
  • P7-1000

The P7-750 is also available for special demands.

Application of Portable Sand Blasting Machine

  • portable sand blaster for sale is used in preparation for painting, anodizing, welding, or other activities that need a clean surface, clean a surface by removing undesired rust, scale, paint, etc.
  • a rough product to deburr, remove tooling marks, or otherwise finish it.
  • The peening action of successive impactions can change metallurgical characteristics or stress alleviate a part.
  • Create a matte or decorative finish as desired.
  • Portable sand blasting equipment is used for real cutting or inscription of partially masked components, such as tombstones, or
  • "Flashing" (extra material) should be removed from moulded plastic or rubber.

Portable Sand Blasting Machine Manufacturer in India

We are offering you a low price portable sand blasting machine for sale. Dustless blasting machine is the best portable sand blasting machine manufacturer in India. We are also offering grit blasting machine, portable sand blaster equipment, shot blasting machine, grit blasting machine, portable shot blasting machine, portable grit blasting machine, plastic abrasive media, centrifugal flow fan, air breather, PS balls, plastic abrasive media, garnet abrasive, aluminum oxide, arc spray gun, thermal spray gun and portable sand blasting machine at low price

Portable Sand Blasting Machine Price in India

Dustless blasting machine manufacturing company manufactures and supplies a range of blasting machines and products. Portable sand blasting machine with or without remote control is available here at a very low price. Along with these shot blasting machine in India, abrasive media, steel shots, steel grit, aluminum oxide, arc spray gun and dust collectors are also available at affordable prices.

Related Blogs FAQ

Ans.

Sand blasting is the activity of coercively impelling a surge of abrasive material against a surface constrained to smooth an unpleasant surface, roughen a smooth surface and shape a surface, or eliminate the surface pollutants. Sand used to be the most usually utilized material, however since the lung infection silicosis is brought about by broadened inward breath of the residue made by sand, different materials are currently utilized in their place.

Ans.

Sand blasting and shot blasting both are the cycle which is being used in mechanical surface cleaning. Many industries that utilization metal applies these techniques in everyday rehearses for eliminating consumption, paint, and different movies and setting up the surface for covering. In the two techniques, cast ironwork is additionally impacted to eliminate old paint layers. In any case, the contrasts between the two cycles are just for rule and application types.

Ans.

The main purpose behind sand blasting is to eliminate paint or rust and other surface-toxins from hardware, vehicles, houses, and practically some other surface. In the interim, it is a surface treatment measure broadly utilized in a wide range of enterprises for different purposes.

Ans.

To remove paint or rust from the surface Sand blasting is highly recommend. This cycle is coercively impelling a surge of grating material against a surface constrained to smooth or unpleasant the surface. Sand blasting can prompt the paint to look lopsided when it fixes and bubbles once the task gets wrapped up.

Ans.

The sandblaster works to clean and scrape a surface, regularly metal, of any rust, paint, or other undesirable surface materials. In this innovation, the hose associates with the air tank, and the hopper is loaded up with a grating to guarantee the best outcomes with no obstacles.
